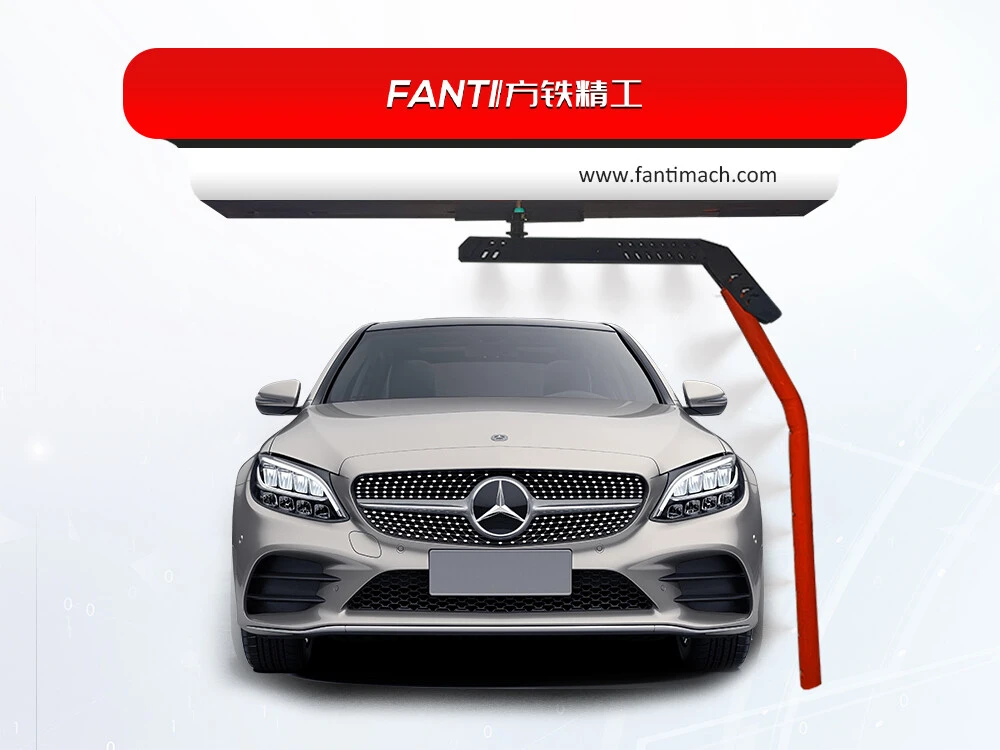

FT-EcoSeries E100 Economical PLC Controlled Car Wash Machine

FT-EcoSeries E100 Economical PLC Controlled Car Wash Machine
Positioning: E-series entry-level model
Target users: Car wash chain operators
Floor Area: Smaller floor area, more flexible deployment
Function: 360 degree high-pressure surround flushing, lower energy consumption, and economical operation

Product Introduction

Product Overview

Product Name: FT EcoSeries E100 Economic PLC Controlled Car Washing Machine

Product positioning: The entry-level product focuses on economy and provides intelligent car washing solutions for chain stores, gas stations, and automotive service enterprises.

Core technology: Equipped with high-pressure water jet and intelligent sensing system. Innovatively eliminating the blower drying module, it has become an ideal choice for indoor exhibition halls and constant temperature and humidity environments while reducing energy consumption and operating noise.

Environmental protection: Each wash can save more than 30% of water and is compatible with the water circulation system.

Installation support: Overseas on-site installation

Certification: CE certification, over 50 software copyrights.

Compatible vehicle models:

·SUV

·Car

·MPV

·Compact off-road vehicle

·Light commercial vehicles

Attention: The intelligent sensing system automatically detects the contour of the vehicle and adapts to all types mentioned above, without the need for manual adjustment.

What kind of car wash problem can we help you solve?

·Worried about scratches?

Brushless non-contact technology completely eliminates the risk of scratches.

·High water bills?

Each wash can save more than 30% of water and is compatible with the recycling system, reducing water and discharge costs.

·Is the space limited or difficult to install?

The modular and compact design is suitable for gas stations, car wash lots, parking lots, etc.

·Difficult to retain customers?

Track washing frequency and preferences to implement targeted marketing and membership programs.

·Will unexpected malfunctions harm business?

Real time monitoring+maintenance alerts - detect problems early and reduce downtime.

·No overseas installation or support?

Engineers can perform on-site installation and remote maintenance throughout the year through foreign big data platforms.

Technical Parameters

Basic Technical Specifications

Model NO.

FT-EcoSeries E100

Type

Cold Water High Pressure Car Cleaner

HS Code

8424899990

Nozzle Type

Fan-Shaped Nozzle

Condition

New

Customized

Customized

Output Power

11KW

Power consumption per vehicle

0.3-0.5KW/Car Adjustable

Single Gross Weight

80kg

Size

3.5m*3.2m*6.3m

Color

White and Red or Customized

Material

Stainless Steel with Galvanized+Spray Painted

Water Pump

Imported From Germany

Pressure: 80kg   Flow Rate: 80L/MIN

Car Wash Time

General Washing takes about 3min/car,fine washing takes about 5min/car

Voltage

380V/Customized

Water ConsumptionAbout 70-80L/Nehicle

Water wax consumption per vehicle

80L-120L/Car Adjustable

Wipe-free Cleaning Solution Consumption

150-180ml/Vehicle Adjustable

Foam Consumption40-50ml/Vehicle Adjustable

Air Drying Function

No

MOQ

1 Set

Production Time

15 Days

Packing Size

12CBM


Functions

Core Features & Functions

·Single-arm 360° variable-frequency rotating spray

Combines high-pressure water and precise rotation for full coverage.

·Supports remote control via mobile system and remote start

Enables remote operation and emergency stop.

·Four modes switching

Includes high-pressure rinse, foam, water wax, and drying modes.

·Automatic car wash liquid proportioning system

Adjusts ratios of detergents, foam, and wax without manual intervention.

·One-button automatic drainage

Prevents liquid residue in pipes for cold-weather operation.

·One-button start/reset

Simplified operation with automatic fault recovery.

·Ultrasonic distance detection

Accurately measures vehicle position and adjusts spray range.

·Self-diagnosis and alarm system
Monitors operational status and alerts for faults.

·Car wash record counting and query
Tracks usage data for management and analysis.

·Intelligent anti-collision with vehicle stopper
Uses sensors and physical barriers to protect vehicles and equipment.

·Signal indicator lights
Provides real-time instructions and status updates.

·High-concentration foam spraying
Applies dense foam for enhanced dirt removal and paint protection.


Ideal Applications
▸ Pre-delivery surface preparation for new vehicles
▸ Daily showroom display maintenance
▸ Post-repair quick-clean in service bays


Global Service Network

Onsite Support: 24-hour response for critical issues (e.g., pump failure).

Training & Upgrades: Free operator training and lifetime software updates.

Spare Parts: German/Japanese components ensure long-term reliability.
